TECHNICAL SPECIFICATION
MODEL | FCMS18 | FCMS20 | FCMS30 |
CUTTING DEPTH | 18 cm | 20 cm | 30 cm |
MAX. CUTTING DEPTH | 20 cm | 25 cm | 35 cm |
SAW BLADES | Ø300 – Ø500 mm | Ø300 – Ø600 mm | Ø350 – Ø900 mm |
PROGRESS TYPE | Semi Automatic | Semi Automatic | Semi Automatic |
POWER TRANSMISSION | Belt Pully | Belt Pully | Belt Pully |
WEIGHT | 170 kg | 250 kg | 350 kg |
CUTTING DEPTH SETTING | Mechanic | Hydraulic | Hydraulic |
WATER TANK CAPACITY | 90 lt | 60 lt | 65 lt |
DIMENSIONS (WxLxH) | 60x108x100 cm | 65x135x115 cm | 92x175x120 cm |
NIGHT LIGHTING | NO | STANDART | STANDART |
ENGINE | Gasoline Honda GX390 13 HP | Diesel HITECH 22 HP | Diesel Lombardini 28,5 HP |
Diesel Antor 12 HP | Electrical 7,5 HP | Electrical 20,5 HP | |
Electrical 10 HP |

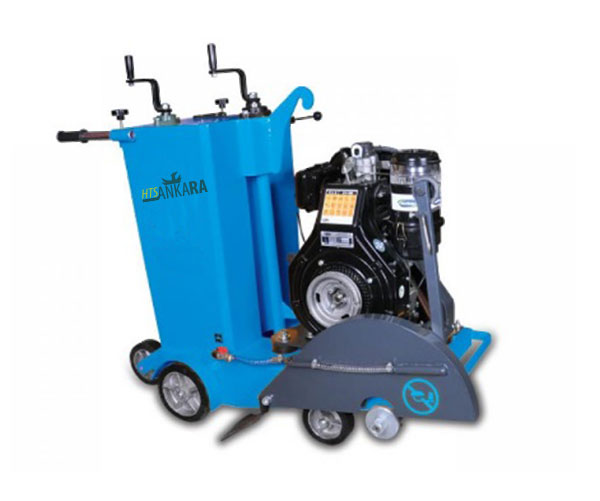

Our FCMS Series Joint Concrete Asphalt cutting machines are semi-automatic walking system machines.
They are special production machines for your deep cutting works with heavy-duty chassis and high engine powers.
Concrete asphalt cutters are a machine designed to cut a certain width and depth on asphalt or concrete surfaces. These machines are used in many different sectors such as road construction, concrete floors, maintenance and repair work.
Joint asphalt cutters are machines with different features. For example, features such as cutting depth, cutting width, engine power and water cooling system differ according to the intended use and needs of the machines.
These devices are used in many areas such as road construction and repair and infrastructure works. Joint asphalt cutters increase work efficiency by accelerating the cutting process and allow the cutting process to be done more precisely and properly.

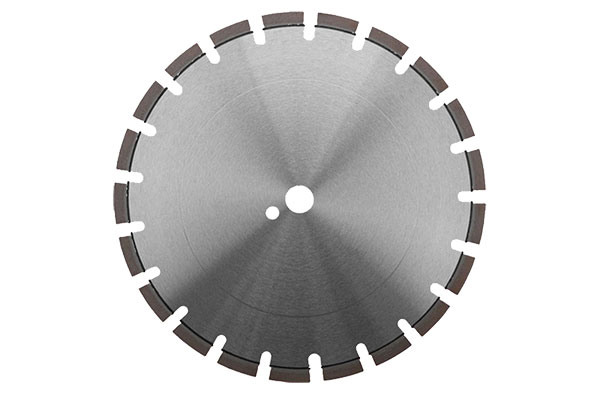

USED CUTTING BLADE
Ø300 mm FRESH CONCRETE BLADE
Ø300 mm ASPHALT BLADE
Ø300 mm OLD CONCRETE BLADE
Ø350 mm FRESH CONCRETE BLADE
Ø350 mm ASPHALT BLADE
Ø350 mm OLD CONCRETE BLADE
Ø400 mm FRESH CONCRETE BLADE
Ø400 mm ASPHALT BLADE
Ø400 mm OLD CONCRETE BLADE
Ø450 mm FRESH CONCRETE BLADE
Ø450 mm ASPHALT BLADE
Ø450 mm OLD CONCRETE BLADE
Ø500 mm FRESH CONCRETE BLADE
Ø500 mm ASPHALT BLADE
Ø500 mm OLD CONCRETE BLADE
Ø600 mm FRESH CONCRETE BLADE
Ø600 mm ASPHALT BLADE
Ø600 mm OLD CONCRETE BLADE
Ø900 mm FRESH CONCRETE BLADE
Ø900 mm ASPHALT BLADE
Ø900 mm OLD CONCRETE BLADE
